Routine Maintenance

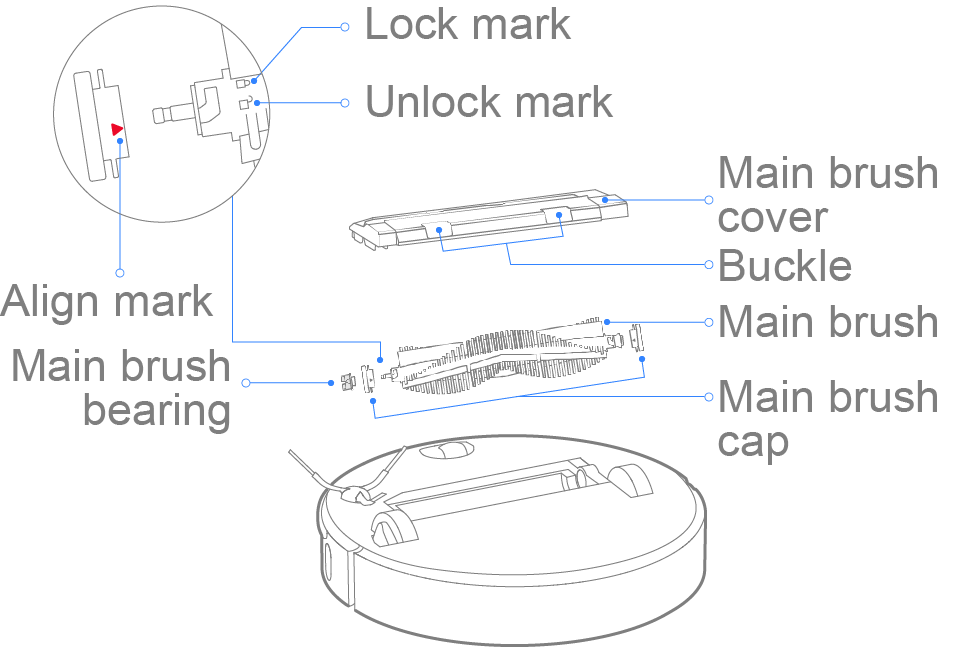

Main brush *Clean weekly

1. Turn the robot over and push the buckle to remove the main brush cover.

2. Lift the main brush out and remove and clean its bearing.

3. Rotate in the direction of the unlock mark and remove the main brush cap.

4. Use the supplied main brush cleaning tool to remove hair entangled around the main brush and its bearing.

5. Install the main brush cap and main brush bearing in the direction of the lock mark.

6. Insert the main brush back into the robot and press the main brush cover to secure the buckle.

Note: It is recommended to replace the main brush every 6-12 months to ensure effective cleaning.

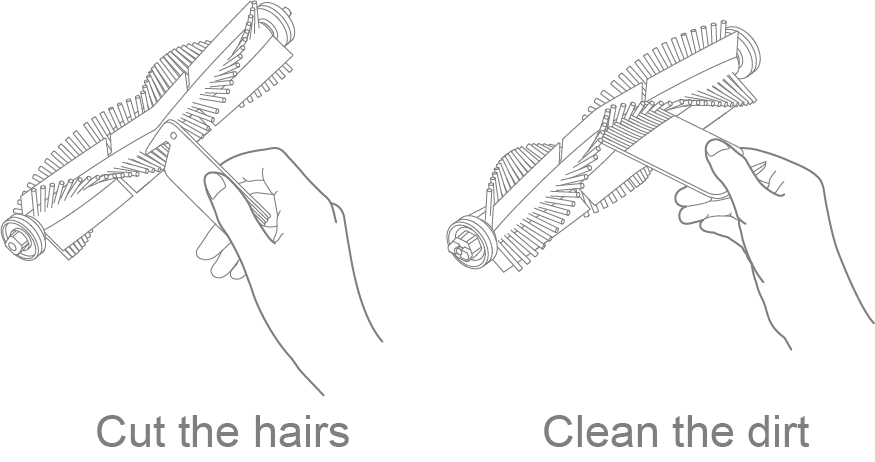

Use of main brush cleaning tool:

Dust bin and filter *Clean weekly

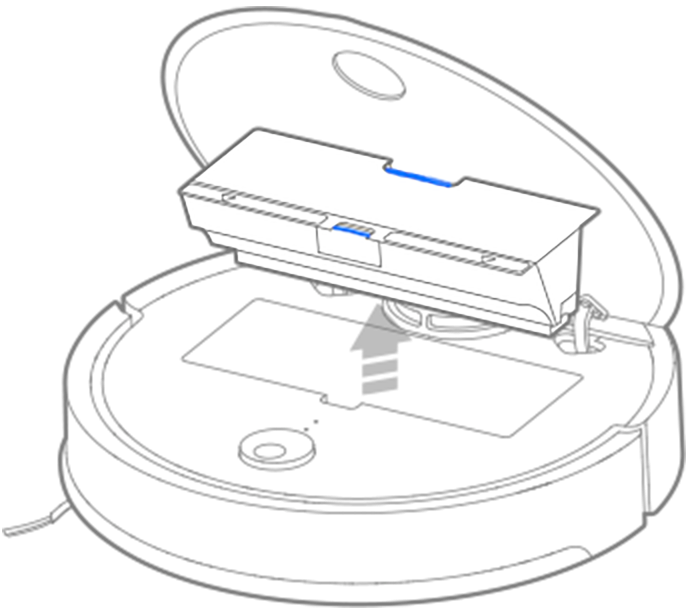

1. Remove the top cover of the machine and press the dust bin buckle to lift up and remove the dust bin.

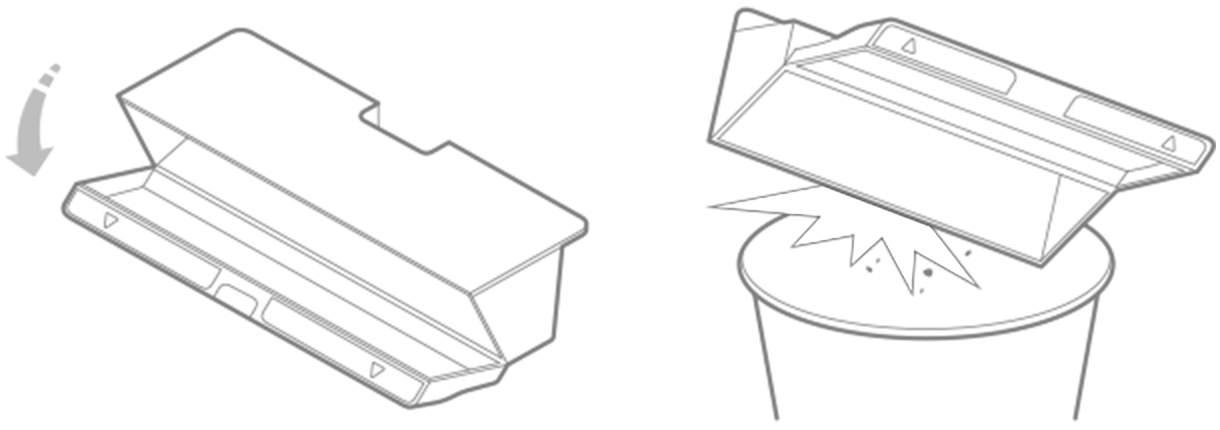

2. Open the dust bin cover as indicated by the arrow, and pour the trash out.

Side brush *Clean monthly

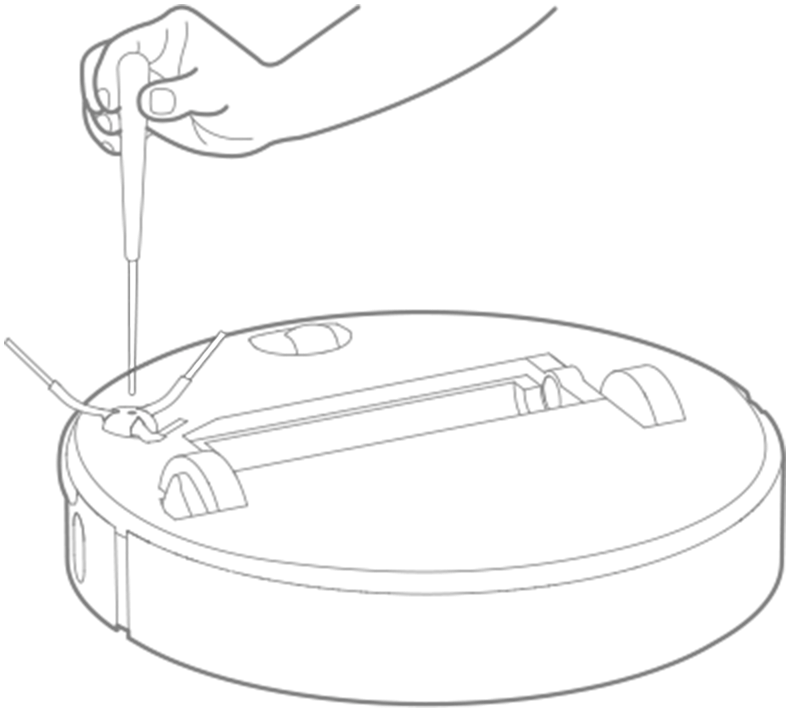

1. Flip the machine over to remove the fixing screw on the side brush.

2. Remove and clean the side brush.

3. Reinstall the side brush and tighten the screw.

Note: It is recommended to replace the side brush every 3-6 months to ensure the cleaning effect.

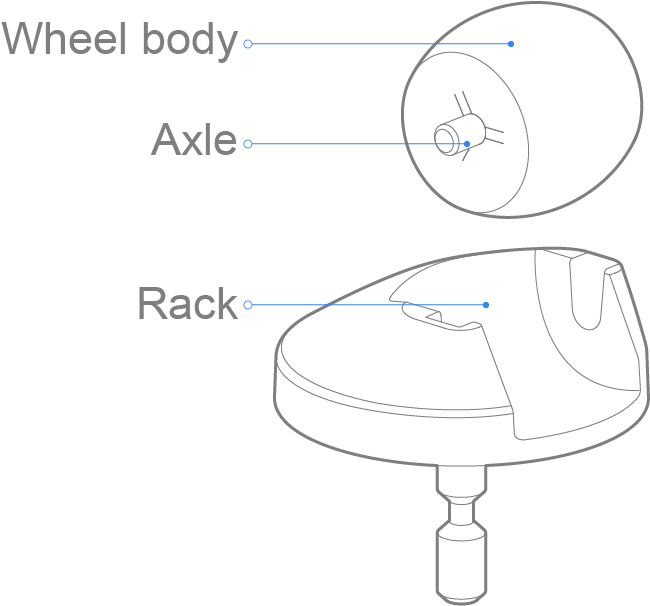

Omni-directional wheel *Clean monthly

1. Flip the machine over and lift the omni-directional wheel up.

2. Remove hair and dirt on the wheel body and axle.

3. Reinstall the wheel body and press tightly.

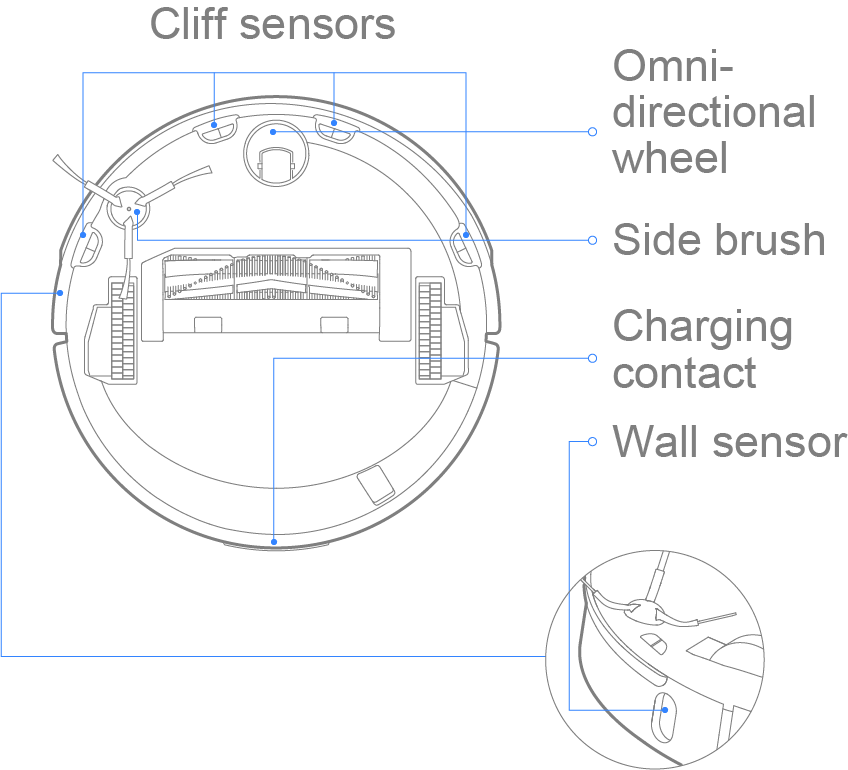

Machine sensor *Clean monthly

Use a soft dry cloth to wipe and clean the sensors, including:

1. Four cliff sensors on the bottom of the robot.

2. The wall sensor on the right side of the machine.

3. The charging contact on the rear of the machine.

Battery

The machine is equipped with a built-in high performance lithium-ion rechargeable battery pack. To maintain battery performance, please keep the machine charged for normal use.

Note: If the machine is left unused for a prolonged period of time, please power it off before storage and charge it at least once every 3 months to avoid degradation due to over-discharge.

Dock charger *Clean monthly

Use a soft dry cloth to clean the charging contact of the dock charger.
